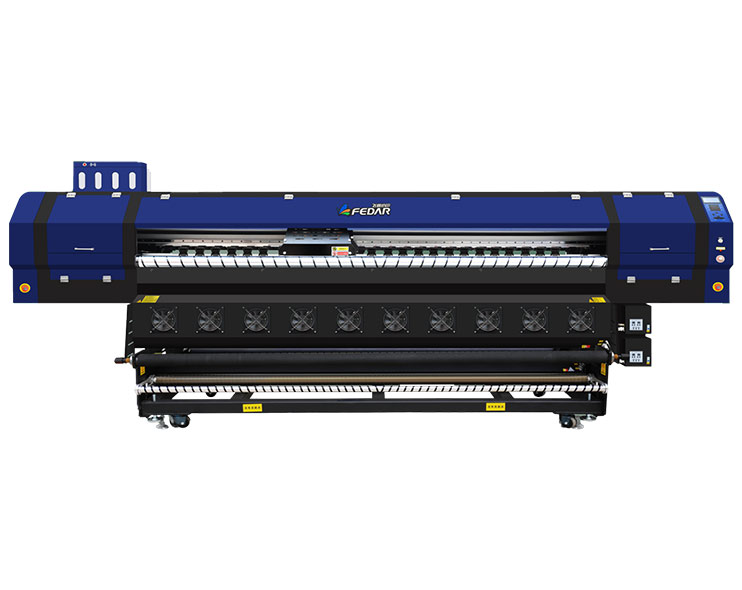

• FD5328E (8 Heads*3200mm)
FD5328E (8 Heads*3200mm)
Fedar FD5328E Sublimation Printer uses 8 Epson Original I3200-A1 print heads. Max Printing Width: 3200mm. Max Resolution: 3200DPI. Max Printing Speed: 420 Sqm/Hr (Single Pass).

PARAMETERS

ModelFD5328E Sublimation printer
Printing Size3200mm
Printing Speed

360*1200dpi  1PASS:  420m²/h

 360*2400dpi  2PASS:  210m²/h

Printhead Type: EPSON I3200-1 Printhead   Printhead Quantity:8   Nozle Quantiy: 3200
Max Resolution3200DPI
Ink Color  CMYK(Optional 8 Colors)
Ink TypeSublimation Tnk
RIP SoftwareMaintop, FlexiFRINT, ONYX, Neostampa and etc. Maintop6.1(standard Equipped)
InterfaceGigabit Port
Print File FormatBMP, TIF, JPG, PDF Etc.
Heating SystemExtra Front Heating System
Feeding MethodRoll to Roll, Leaf
Color ManagementICC Based; Density & Curves Adjustable
Power Supply50HZ/60HZ, 110~220V, 10A
Gross Weight600KGS
Working Environment Temperature18℃-30℃ ,Humidity:35%-65%
Powder SupplyInput Voltage: 210-230VAC    Machine Printing Power: 9.5KW     Dryer: Max 7.2KW
Working Size (L*W*H)

Dimension: 5196*1220*1855mm

Packing: 5320*1170*1900mm

DETAILS

01 EPSON ORIGINAL I3200-A1 PRINT HEAD OF FEDAR FD5328E SUBLIMATION PRINTER

Fedar FD5328E Digital Sublimation Printer uses 8 Epson original I3200-A1 printing heads.Max Resolution: 3200DPI. The printing speed can be more than 420 Sqm/hr, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. The Epson I3200-A1 head adopts automatic cleaning and automatic flash spray function to prevent blockage.


02 EPSON'S UNIQUE VARIABLE SIZED DROPLET TECHNOLOGY (VSTD) OF FD5328E PRITNER

Fedar FD5328E Sublimation Printer uses 8 Epson Original I3200-A1 Print Heads. Max Printing Width: 3200mm. Max Resolution: 3200DPI.

Epson's unique Variable Sized Droplet Technology (VSDT) delivers smooth gradation by freely control to eject the droplet volume. Ink ejection of up to 4 colors realize with high resolution (600 dpi/colour). In addition to the I3200, I1600 has also been added to the lineup in order to meet the various customer needs.


03 CAPPING SATAION OF FEDAR FD5328E SUBLIMAITON PRINTER

Fedar FD5328E Digita Sublimation Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

03 (1).jpg

04 FEDAR FD5328E SUBLIMATION PRINTER PRINTING CARRIAGE

Fedar FD5328E Sublimation Printer Printing Carriage The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.


05 HIGH-PRECISION PLATPORM OF FEDAR FD5328E SUBLIMATION PRITNER

Fedar FD5328E Sublimaiton Printer uses assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.


06 INK TANK OF FEDAR FD5328E SUBLIMATION PRINTER

Fedar FD5328E Digital Dye Sublimation Printer uses four super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.


07 FEDAR FD5328E SUBLIMTION PRINTER USE INTELLIENT SHORTAGE ALARM SYSTEM

Intelligent ink shortage system of Fedar FD5328E Sublimation Printer, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.


08 STABLE FEDAR SELF DESIGN PRINTING SYSTEM

The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.


09 AUTO FEEDING AND TAKING UP SYSTEM OF FEDAR FD5328E SUBLIMATION PRINTER

Fedar FD5328E Digital Sublimation Printer uses auto feeding and taking-up device with tension sensor bar makes the force even and makes the paper smoother. It's sample and convenient to take up printed media.


10 FEDAR FD5328E PRINTER INTELLIGENT INFRARED DRY SYSTEM

Fedar FD5328E printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.


11 INDUSTRIAL DESIGN OF FEDAR FD5328E SUBLIMATION PRITNER

The whole frame of Fedar FD5328E Sublimation Printer is welded with square steel, industrial grade design, the whole structure is strong and stable, which ensures that the equipment is stable and does not shake during the high-speed printing process.

01 (1).jpg
