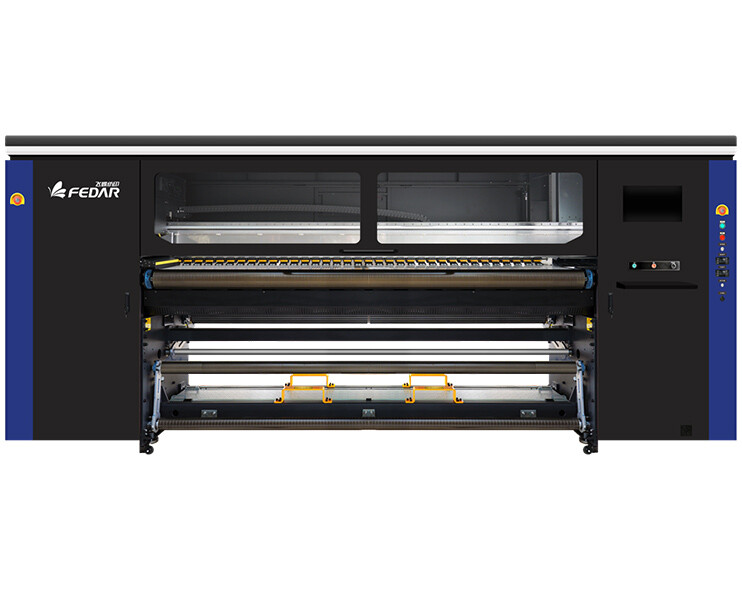

• FD2624E (8 Heads*1900mm)
FD2624E (8 Heads*1900mm)
Fedar FD2624E Sublimation Printer uses 24 Epson Original I3200-A1 Print Heads. Max Printing Width: 2600mm. Max Printing Speed: 1000M²/H 240*1800DPI

VIDEO

PARAMETERS

ModelFedar FD2624E Sublimation Printer
Printing Size2600mm
Printing Speed

   2600 Width: 1000M²/H 240*1800dpi

1900 Width: 880M²/H 240*1800dpi

Printhead 24 EPSON Original I3200-A1 Heads
Max Resolution1800DPI
Ink Color CMYK(Optional 8 ColorS)
Ink Type Sublimation Ink
RIP SoftwareMaintop7.0, FlexiFRINT, ONYX, Neostampa and etc. Maintop7.0(standard Equipped)
InterfaceGigabit Port
Print File FormatBMP, TIF, JPG, PDF Etc.
Heating SystemExtra Front Heating System
Feeding MethodRoll to Roll, Leaf
Color ManagementICC Based; Density & Curves Adjustable
Power Supply50HZ/60HZ, 110~220V, 10A
Gross Weight600KGS
Working Environment Temperature18℃-30℃ ,Humidity:35%-65%
Powder SupplyInput Voltage: 210-230VAC    Machine Printing Power: 9.5KW     Dryer: Max 7.2KW

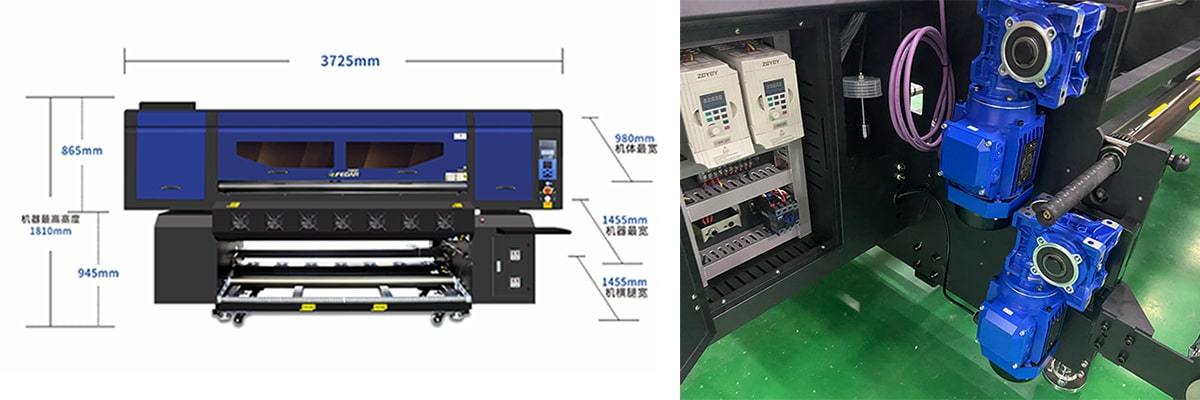

Working Size (L*W*H)

Dimension: 4600*3100*2250mm

Packing: 4730*1150*2120mm

DETAILS

1. EPSON I3200-A1 printhead

EPSON I3200-A1 printhead  has 3200 nozzles, variable drop ink technology, improves printing resolution, improves color restoration degree, up to four levels of gray print can be supported.

Japenese THK guide rail

2. IMPORTED THK MUTE GUIDE RAIL

Japanese double THK mute guide rail, moving steadily, longer working life and reducing the resistance and noise of carriage moving during the high speed printing.

日本 THK导轨-min.jpg

3. SPECIAL-DESIGNED AIR SUCTION PLATFORM

Unique air suction mode with stronger adsorption, which is more even for paper moving, and ensures the printing quality.

4. NEW INTEGRATED HEAD CAPPING STATION

Fully sealed capping station, auto cleaning, flash and moisturizing, easy to operate and maintain.

capping station

5. IMPORTED FLUORORUBBER PINCH ROLLER

lmported fluororubber pinch roller , preventing statics which may result in ink misting during printing. Specially designed pinch roller, which can be lifted up independently to eliminate wrinkle during printing.

pinch roller

6. Intelligent Drying Control System

The spacing between groups can be adjusted by grouping, and the drying area can be freely adjusted, which is convenient for customers to make targeted adjustments according to the type of output, and more energy-saving.

motor

7. ANTI COLLISION SYSTEM IN CARRIAGE

lt is easy and convenient to adjust the printhead height according to different media. And anti collision system installed on both sides of carriage, which automatic detect any force on carriage way to protect the printhead inside.

carriage

8. Strip Roller

This Textile sublimation Printer has special tension rubber rollers that can reduce dark color job thin paper wrinkle effect.
