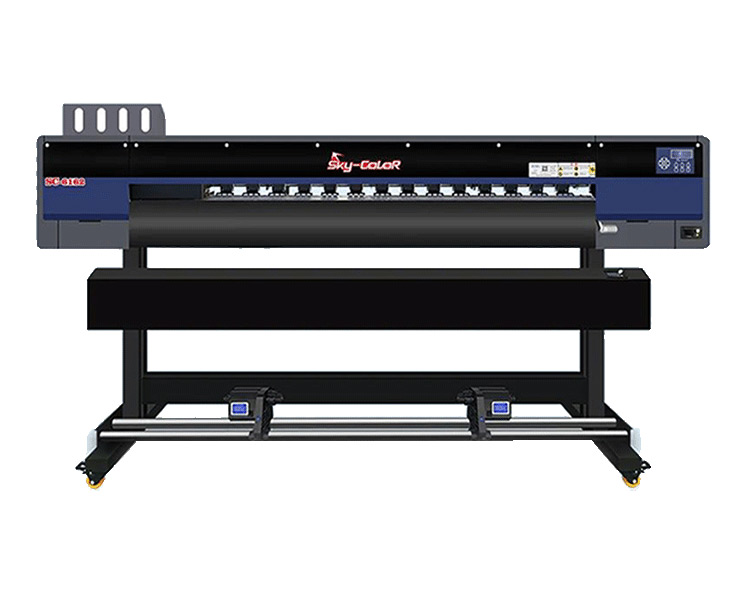

• SC-6160S
SC-6160S
Skycolor SC-6160S Wide Format Eco Solvent Printer uses two Epson I3200-E1 heads, Max Printing Width: 1600mm. Max Resolution: 3200DPI. Max Printing Speed: 3pass: 26 Sqm/Hr.

FEATURES:

Model: Skycolor SC-6160 Wide Format Eco Solvent Printer

Printing Width: 1600mm

Print Head: One Epson Original I3200-A1/E1 Heads

Printing Speed:  3pass   26m2/h

                           4pass   20m2/h

                           6pass  15m2/h

PARAMETERS:

Printhead Type

Epson I3200-AI/E1 head Heads

Printhead Quantity

1

Printing Size

1600mm

Printing Speed

3pass   26m2/h

4pass   10m2/h

6pass   15m2/h

Max Resolution

3200DPI

Max Materials Input Size

1600mm

Ink Color

C M Y K

Ink Type

Water-Based Ink, Eco-solvent Ink

Printhead Cleaning

Automatic Cleaning, Automatic Flash Spray Moisturizing Function

Printing Media

Indoor Advertising Material, Transfer Paper, PP, Vinyl,Flex Banner, Canvas Banner, etc

System Configuration

Operating System: Win7 64bit,Win10 64bitInterface: Giga-bit Ethernet Port

Standard Configuration

Heating Method: Front,Middle and Rear Three-stage HeatingFeeding Method: Roll to Roll

Dimensions

2517x681x1250mm

Computer Configuration

Hard Disk: More than 500G,ATI Mobility RadeonMemory 8G DDR4 above,CD-ROM: DVD ROM,CPU: Core i5 or above

RIP Software

Maintop,FlexiPRINT,ONYX,etc

Print File Format

BMP, TIF, JPG, PDF Etc.

Power Supply

50HZ/60HZ, 220V, 10A

Working Environment

Temperature:15C-30C     Humidity:35%-65%

Gross. Weight

240KGS

DETAILS:

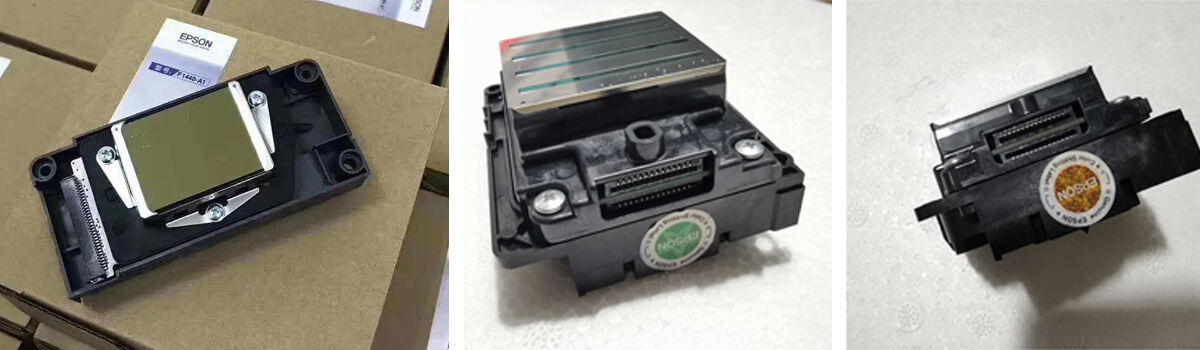

01 PRINT HEAD

Skycolor SC-6160 Wide Format Eco Solvent Printer uses Epson DX5 heads or Epson I3200-E1 heads. The printing speed can be more than 98㎡/h, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. The Epson heads adopt automatic cleaning and automatic flash spray function to prevent blockage.
Epson DX5 heads Max Printing Width: 1600mm, Max Resolution: 1440DPI, Max Printing Speed: 16Sqm/H.
Epson I3200-E1 heads, Max Printing Width: 1600mm, Max Resolution: 3200DPI, Max Printing Speed: 25Sqm/H

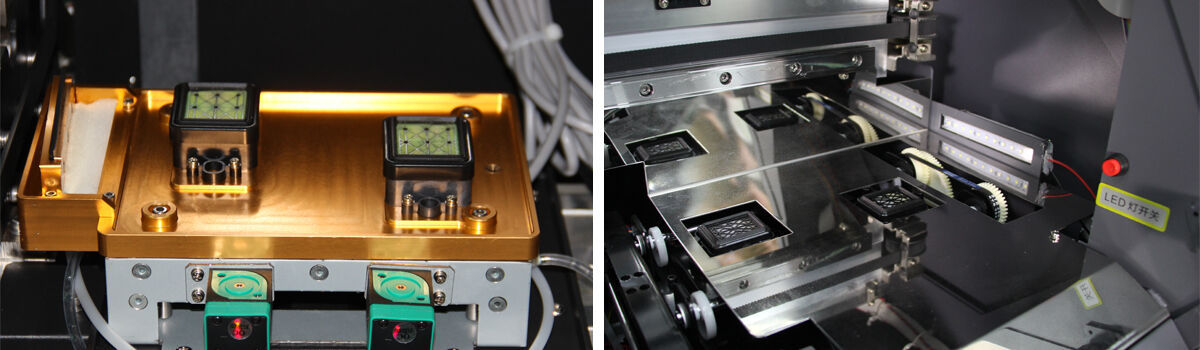

02 CAPPING SATAION

Skycolor SC-6160 Wide Format Eco Solvent Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

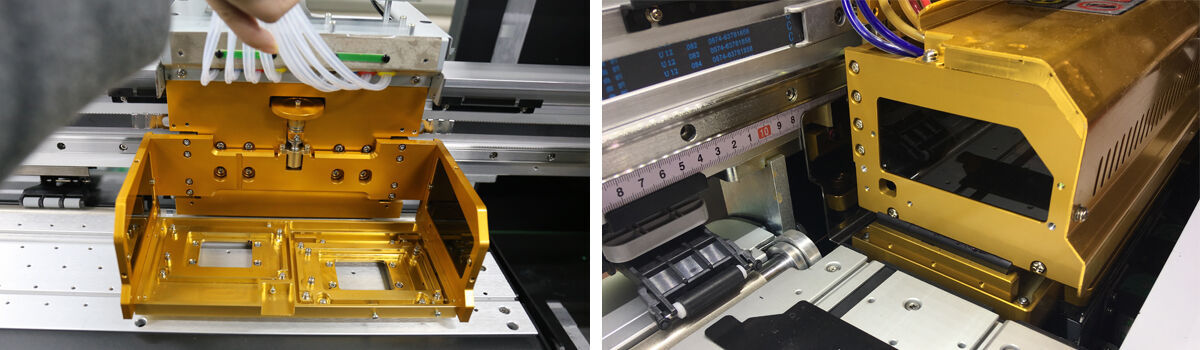

03 PRINTING CARRIAGE

The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

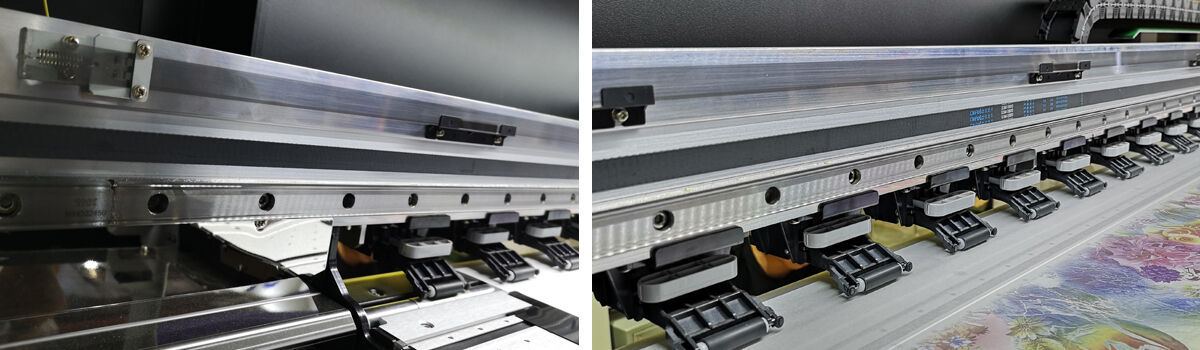

04 HIGH-PRECISION PLATPORM

The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

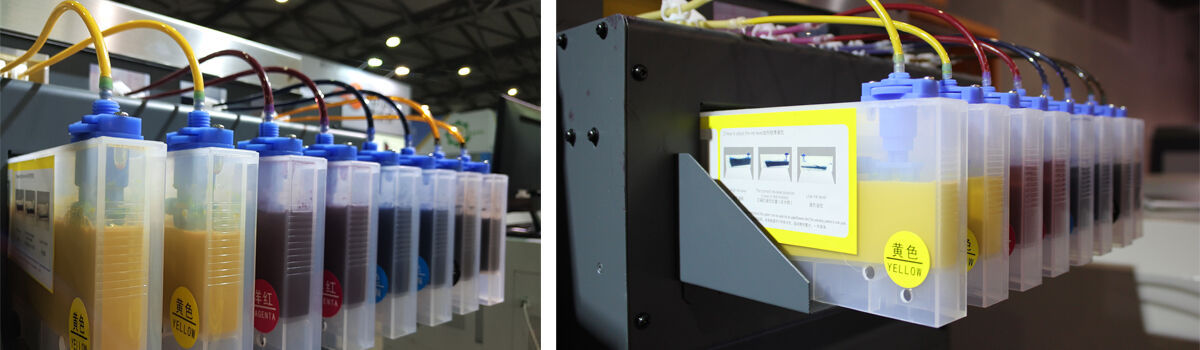

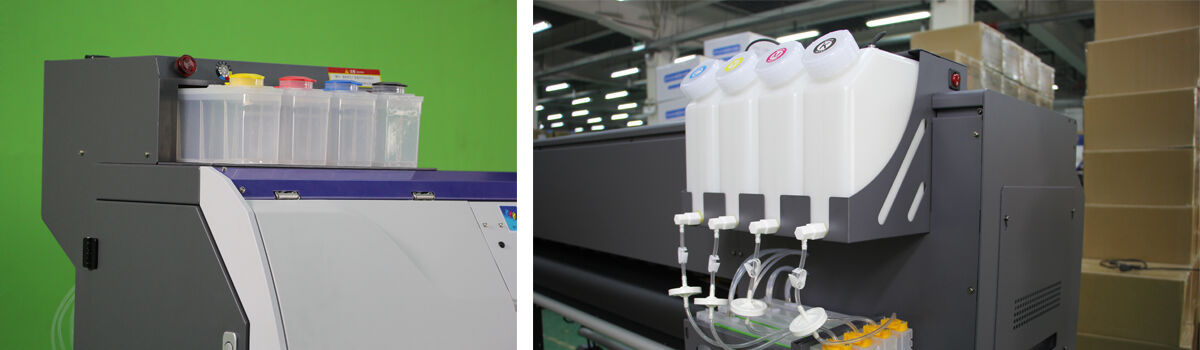

05 INK TANK

Skycolor SC-6160 Wide Format Eco Solvent Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.


06 INTELLIENT SHORTAGE ALARM SYSTEM

Intelligent ink shortage system reminding, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.

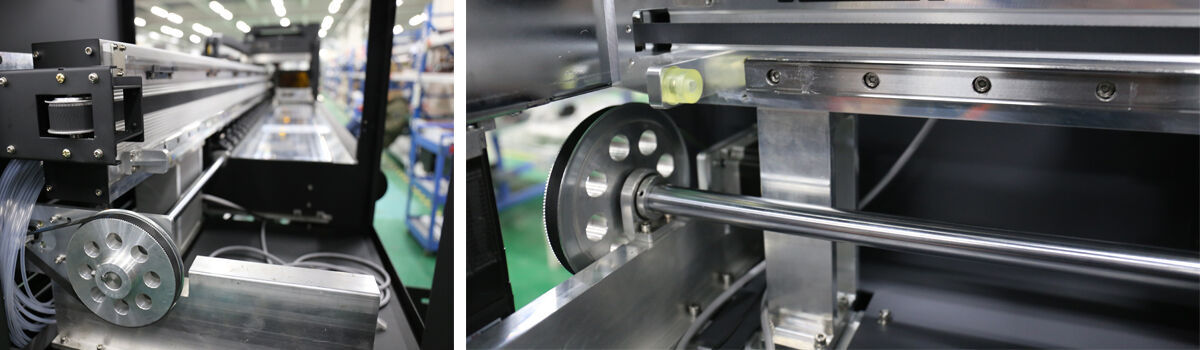

07 STABLE FEDAR SELF DESIGN PRINTING SYSTEM

The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

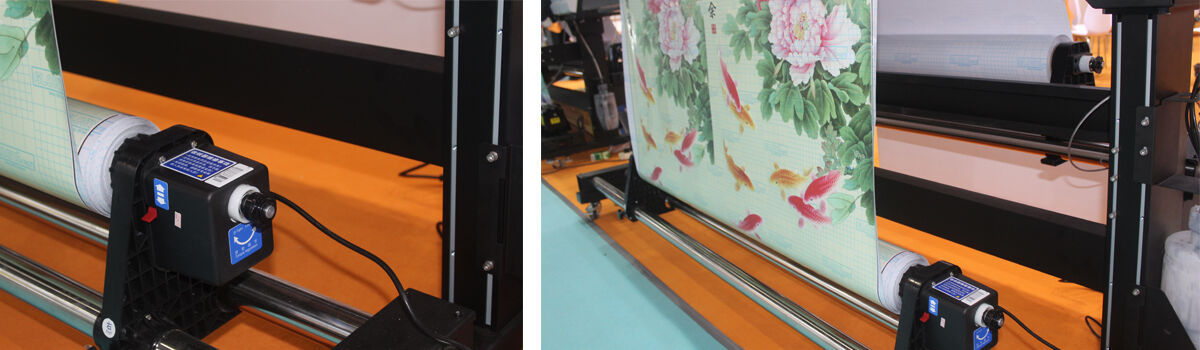

08 DOUBLE MOTOR POWER TAKING UP SYSTEM

This taking up system can ensure that the left and right sides of the paper-receiving paper have the same pulling force; the rewinding is tidy and does not deviate.

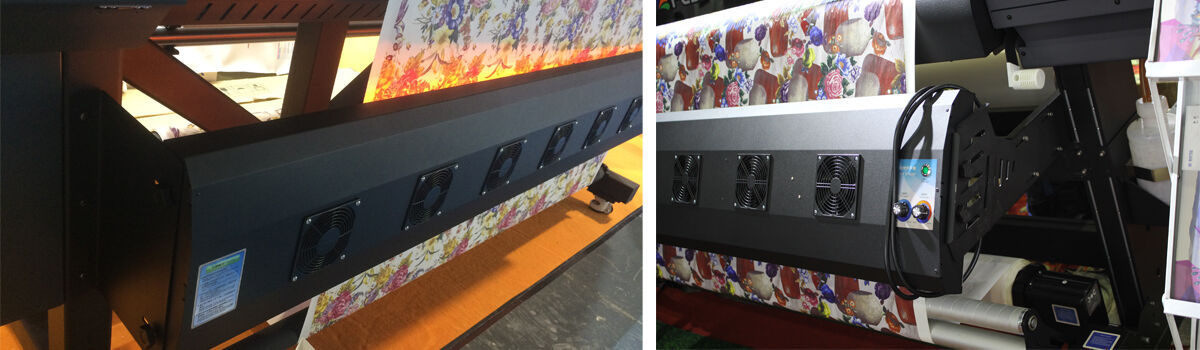

09 INTELLIGENT INFRARED DRY SYSTEM

Skycolor SC-6160 Wide Format Eco Solvent Printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.

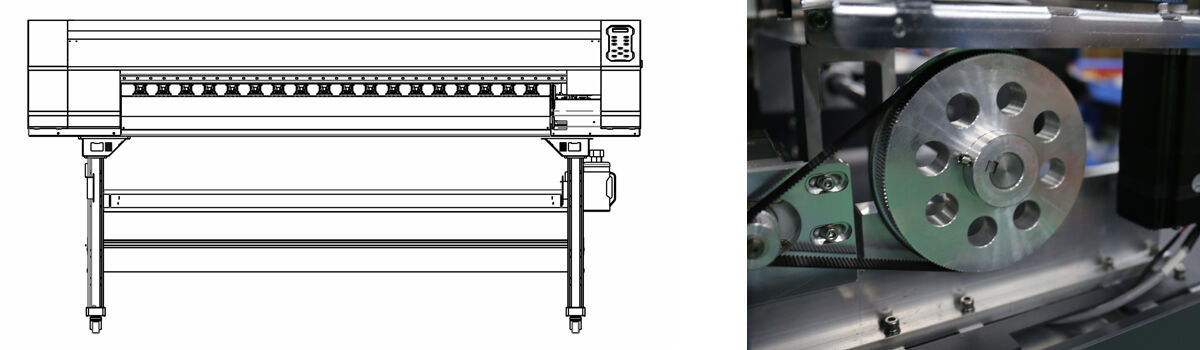

10 INDUSTRIAL DESIGN

The whole frame is welded with square steel, industrial grade design, the whole structure is strong and stable, which ensures that the equipment is stable and does not shake during the high-speed printing process.
