• H1
H1

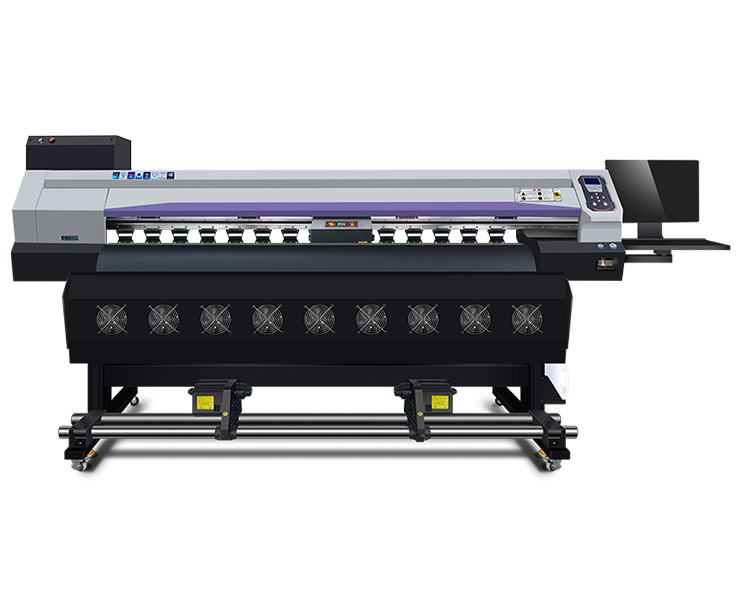

Skycolor H1 Wide Format Eco Solvent Printer uses Epson DX5 heads or Epson I3200-E1 heads, Max Printing Width: 1800mm. Max Resolution: 3200DPI. Max Printing Speed: 2pass: 139 Sqm/Hr.

FEATURES:


Model: Skycolor H1 Wide Format Eco Solvent Printer
Printing Width: 1800mm
Print Head: Two Epson DX5 heads or Original I3200-A1 Heads
Printing Speed: 2pass: 139 Sqm/Hr
                          3pass: 79 Sqm/Hr
                          4pass: 54 Sqm/Hr




PARAMETERS:


Model

SkyColor H1 Wide Format Eco Solvent Printer

Printing Size1800mm



Printhead Type and Numbers

  Four EPSON DX5 heads        Four Original I3200-E1 heads

2pass 65Sqm/H                      2pass 139Sqm/H

4pass 53Sqm/H                     3pass 79Sqm/H
6pass 36Sqm/H                      4pass 54Sqm/H
Max Resolution1440DPI or 3200DPI
Max Materials Input Size2000mm
Ink Color

Double C M Y K

Ink Type

Water-Based Ink, Sublimation Ink, Eco Solvent Ink

Ink Supply Type

BuIk Ink System
RIP SoftwareMAINTOP6.0, PHOTOPRINT19, ONYX 19
InterfaceGiga-bit Ethernet Port

Print File Format

BMP, TIF, JPG, PDF Etc.
Drying System

Extra Front Heating System

Optional Device

Intelligent Dryer, Auto Feeding and Take-up System, Anti Collusion System
Color ManagementICC Based; Density & Curves Adjustable
Power Supply

50HZ/60HZ, 220V, 10A

Working EnvironmentTemp.:15 -30°C, Humidity: 35-65%
Package Dimension (L*W*H)2973x952x1632mm
Gross. Weight300KGS

DETAILS:

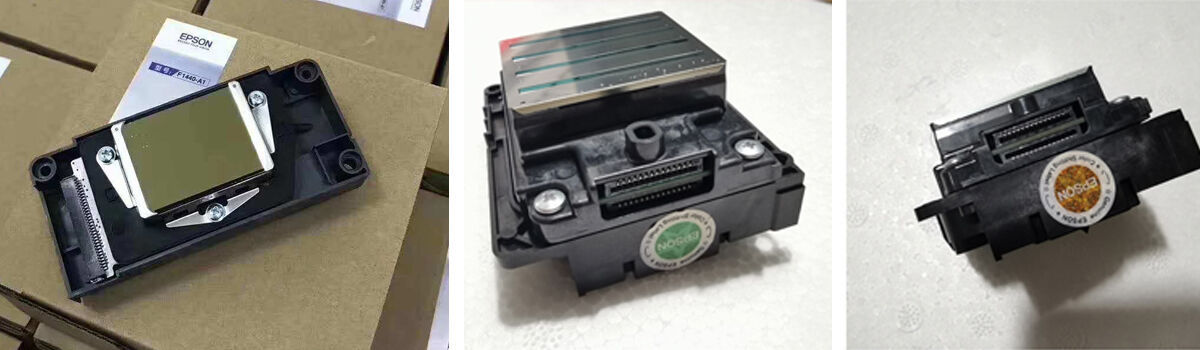

01 PRINT HEAD

Skycolor SC-4180TS Wide Format Eco Solvent Printer uses Epson DX5 heads or Epson I3200-E1 heads. The printing speed can be more than 80㎡/h, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. The Epson heads adopt automatic cleaning and automatic flash spray function to prevent blockage.
Epson DX5 heads Max Printing Width: 1600mm, Max Resolution: 1440DPI, Max Printing Speed: 35Sqm/H.
Epson I3200-E1 heads, Max Printing Width: 1600mm, Max Resolution: 3200DPI, Max Printing Speed:139Sqm/H

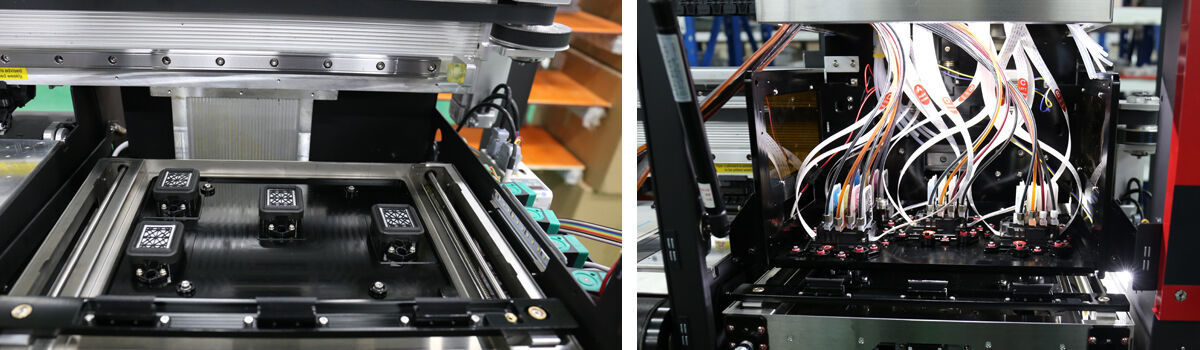

02 CAPPING SATAION

Skycolor SC-4180TS Wide Format Eco Solvent Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

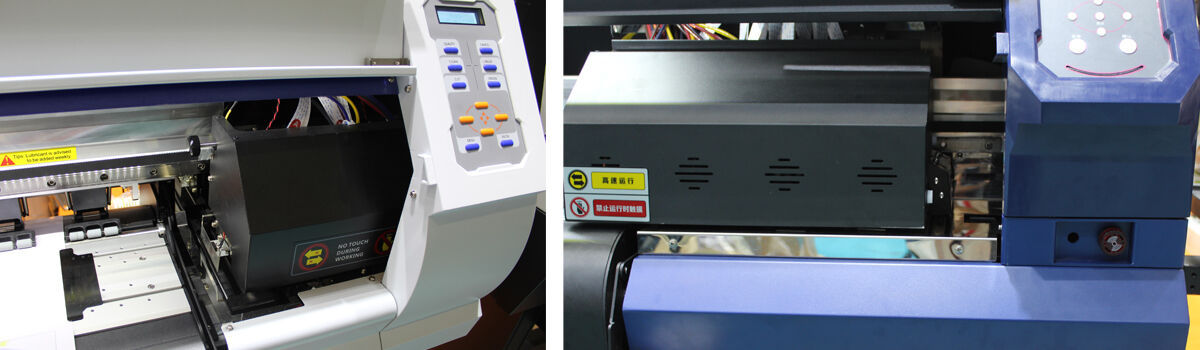

03 PRINTING CARRIAGE

The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

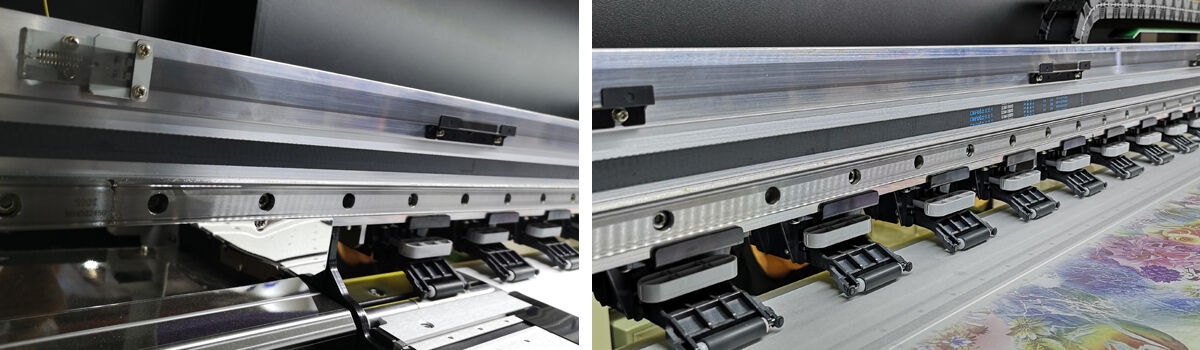

04 HIGH-PRECISION PLATPORM

The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

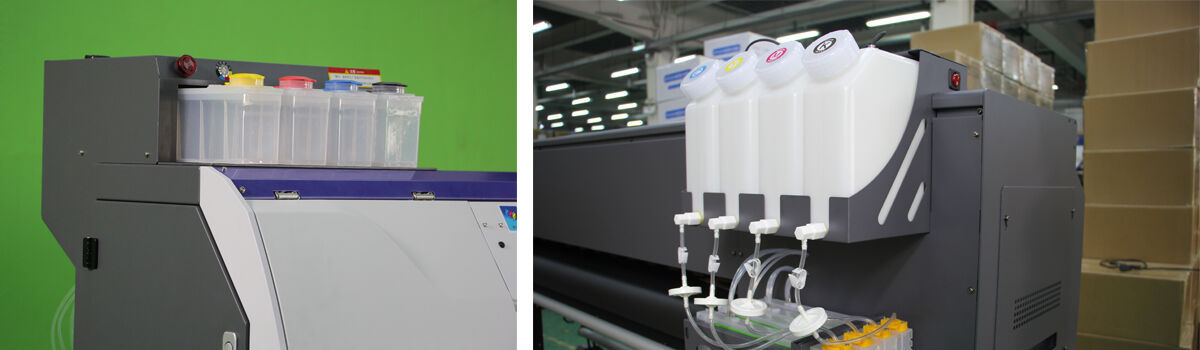

05 INK TANK

Skycolor SC-4180TS Wide Format Eco Solvent Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.


06 INTELLIENT SHORTAGE ALARM SYSTEM

Intelligent ink shortage system reminding, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.

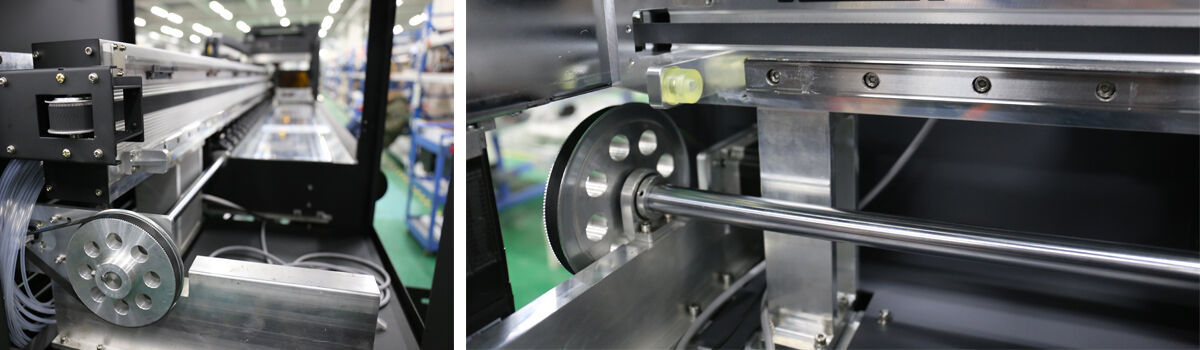

07 STABLE FEDAR SELF DESIGN PRINTING SYSTEM

The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

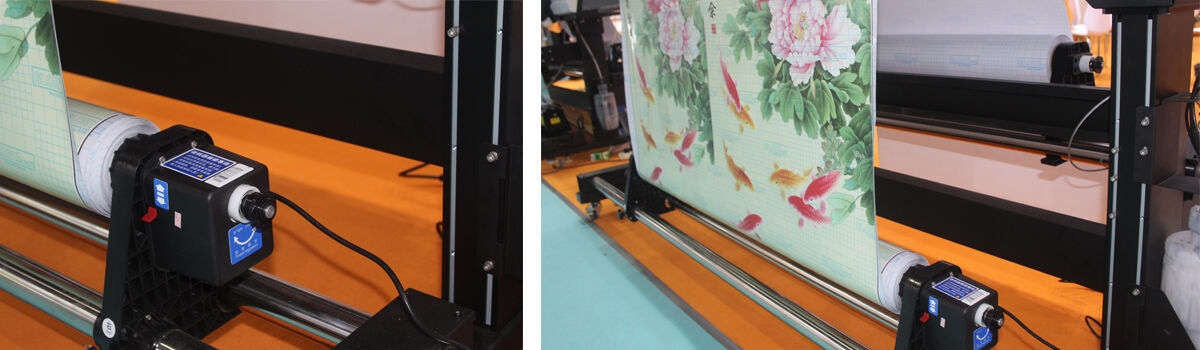

08 DOUBLE MOTOR POWER TAKING UP SYSTEM

This taking up system can ensure that the left and right sides of the paper-receiving paper have the same pulling force; the rewinding is tidy and does not deviate.


09 INTELLIGENT INFRARED DRY SYSTEM

Skycolor SC-4180TS Wide Format Eco Solvent Printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.


10 INDUSTRIAL DESIGN

The whole frame is welded with square steel, industrial grade design, the whole structure is strong and stable, which ensures that the equipment is stable and does not shake during the high-speed printing process.
