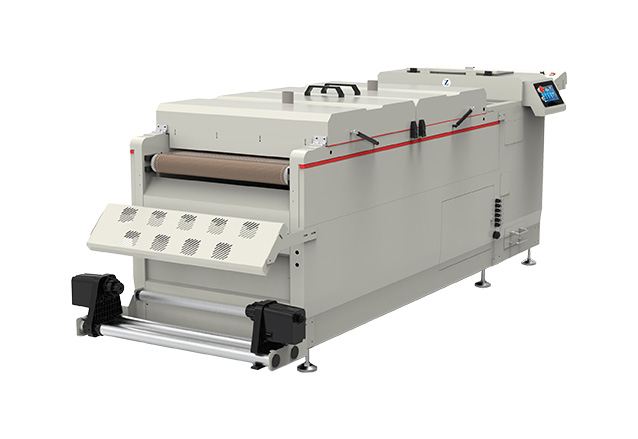

60cm DTF Printer FEDAR FD606
Model: FEDAR FD606 DTF Printer
Printhead Quantity: 6
Printhead: Epson l3200-A1
Print Width: 600mm
Print Colors: CMYK+W
Max.resolution(DPl): 3200DPI
Max speed CMYK: 6Pass: 24㎡/h
info@tex-printer.com
SEND EMAIL
GET PRICE

VIDEO

<iframe    src="

PARAMETERS


Model

FD-606

Printhead

Type: EPSON I3200-A1

Quantity: 6

Print Width

600mm

Print Speed

6Pass: 24㎡/
9Pass: 18㎡/h

Ink Color

CMYK+W

Ink Type

Pigment Ink

Transmit Port

USB 3.0

RIP Software

Fiery, Maintop, Flexi SAl

Print Media

Pet Film

Print File Format

TIF, JPG, PDF Etc.

Working Environment

Temp: 18C-30C,  Humidity: 35%-65%

Power

220V 50HZ/60H,10A

Dimension

Printer Size: 1710*800*1615mm

Package Size: 2060*990*940mm

Weight

Net Weight: 271kg

Gross Weight: 216.7kg

DETAILS

01 Capping Station

This FEDAR FD606 DTF printer is equipped with patented designed maintenance capping station. It's lifted up and down via column driven by motor in the middle, which greatly maintain the balance of capping comparing the traditional gear drive.

cappimg-station

02 Carriage

The FD606 DTF printer has safe anti-collision carriage.

anti

03 Ink Tank

The top grade FD606 DTF printer equips 1.5 L big ink tank circulatory system and stirs white ink intermittently, the user can adjust it on printing software.

ink-Tank

04 Guide Rail

The FD606 DTF printer uses imported HIWIN silent linear guide rail.

guide-rail
